USB4 vs Thunderbolt 5: What Actually Changes in 2026

USB4 Version 2.0 and Thunderbolt 5 both advertise 80Gbps, and both can hit 120Gbps in a boosted mode. The number on the box is not where they differ. The real gap is that Thunderbolt 5 guarantees that speed on every certified device, while USB4 2.0 treats it as an option a manufacturer can skip. That distinction, not the headline bandwidth figure, is what should drive your next dock, cable or laptop purchase.

Why USB4 2.0 and Thunderbolt 5 Share the Same Top Speed

Thunderbolt 5 is built directly on the USB4 Version 2.0 foundation, according to Intel's own Thunderbolt 5 technology brief. Both rely on a signaling method called PAM3, which packs more data into the same physical wiring that earlier 40Gbps cables already used. That is why Intel's brief notes Thunderbolt 5 can run over the same passive cables and board designs as the 40Gbps generation, rather than demanding all-new infrastructure.

USB-IF's October 2022 announcement of the USB4 2.0 specification describes the identical ceiling: 80Gbps symmetric bandwidth as the headline mode, with an asymmetric option that pushes up to 120Gbps in one direction and 40Gbps in the other for demanding displays. Thunderbolt 5's "Bandwidth Boost" feature, covered by Tom's Hardware at launch, is Intel's branded implementation of that same asymmetric mode, switching on automatically when a high-resolution or high-refresh monitor needs the extra headroom.

What Is the Actual Difference Between USB4 2.0 and Thunderbolt 5?

USB4 2.0 defines 80Gbps and 120Gbps as optional ceilings that a manufacturer may or may not implement, along with features like DisplayPort 2.1 output and 240W charging. Thunderbolt 5 certification removes that ambiguity: Intel requires every Thunderbolt 5 port, cable and dock to hit 80Gbps, to tunnel PCIe data, and to support the higher power delivery. In short, USB4 2.0 describes a ceiling a port might reach; Thunderbolt 5 is a promise that it will.

Here is how the headline specs line up side by side, based on USB-IF's specification announcement and Intel's technology brief:

The Gap Hiding Behind the Plain "USB4" Logo

This is the part that trips up most buyers. A cable or laptop port can legally carry the "USB4" name while delivering far less than 80Gbps. Industry coverage of the USB4 certification tiers, including breakdowns from Cable Matters and Face of IT, consistently describes a much lower mandatory minimum for baseline USB4 branding, with 40Gbps and 80Gbps as higher, optional tiers a vendor chooses to implement and certify separately. Notably, USB-IF itself has told partners that its own spec names and technical terms are not meant to describe capabilities to end consumers, which is a tacit admission that the branding alone will not tell you what a port actually supports.

That is a structural problem, not an accident. USB-IF governs a standard used across phones, tablets, hubs, monitors and budget laptops, so it keeps the floor low to avoid shutting cheaper hardware out of the USB4 name. Intel, by contrast, controls Thunderbolt 5 licensing directly and can refuse the badge to anything that does not hit the full spec. The practical fix is the same one as for any such label: check the port's own printed speed (for example "USB4 80Gbps") or look for the Thunderbolt 5 logo itself, and do not assume the bare word "USB4" means the fast tier.

Real Laptops Already Show the Gap in Practice

Apple's rollout of the M5 generation makes the split concrete. According to Apple's published technical specifications, as summarized consistently by Tom's Guide and Kensington's product documentation, the base M5 MacBook Pro keeps three Thunderbolt 4 ports rated at up to 40Gb/s, while the M5 Pro and M5 Max models step up to three Thunderbolt 5 ports rated up to 120Gb/s. Two laptops in the same family, released the same month, carry meaningfully different I/O simply because of which tier Apple chose to certify.

On Windows, premium machines from brands including Lenovo, HP and Razer have begun shipping Thunderbolt 5 configurations, according to Plugable's own tracking of the market through the second quarter of 2026, though that same source describes the broader non-Apple lineup as still thin and growing rather than standard. If you are shopping a Windows laptop today, the port list on the spec sheet, not the processor tier, is what tells you whether you got Thunderbolt 5.

Who Actually Needs Thunderbolt 5 Right Now

The honest answer is a narrow slice of users. A simple rule:

• Get Thunderbolt 5 if: you run an external GPU enclosure, edit high-bitrate video off a Thunderbolt RAID, drive two or more 4K monitors above 60Hz from one cable, or dock a laptop to a hub carrying multiple high-speed peripherals at once.

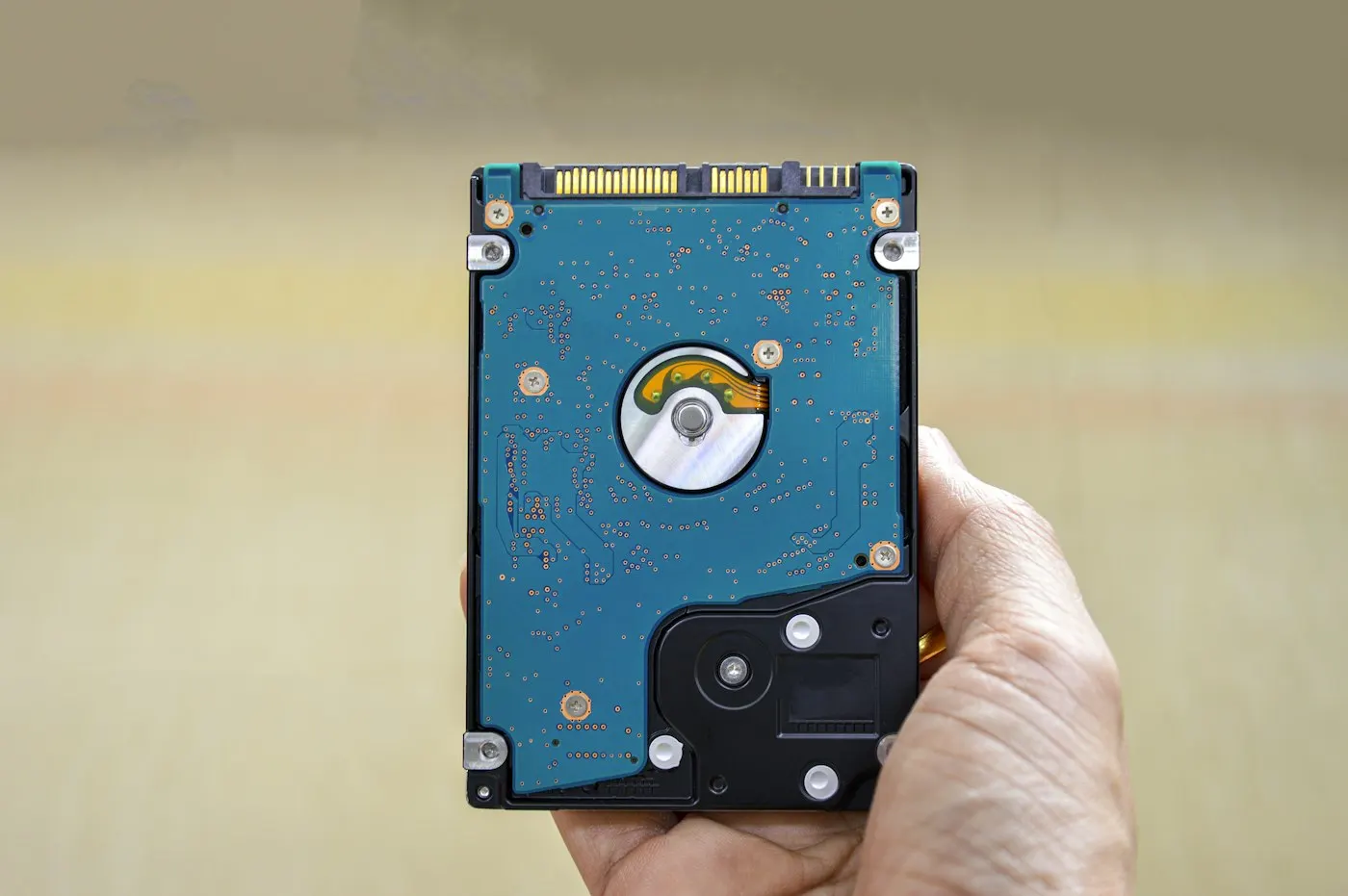

• Stick with USB4 or USB 3.2 if: you mainly move files to and from an external SSD, charge a laptop, or run a single external display, since most everyday external drives, discussed in our portable SSD buying guide, do not come close to saturating even a 20Gbps link.
• Skip the upgrade entirely if: your current setup already does everything you need and you are not hitting a visible bottleneck; paying extra for a Thunderbolt 5 dock or cable to future-proof against workloads you do not have is money better spent elsewhere.

The Honest Limitation: Almost Nothing Needs This Bandwidth Yet

The strongest case against rushing to Thunderbolt 5 is simple: consumer hardware has not caught up to either spec's ceiling. Even fast consumer-grade internal drives, as covered in our NVMe vs SATA SSD comparison, typically max out well under 80Gbps, and a single 4K60 monitor uses a fraction of a 40Gbps link. Thunderbolt 5 docks and certified cables also remain a small, pricier SKU category rather than a commodity one, and Plugable's own Q2 2026 market review describes the ecosystem as still filling in rather than mature.

That is a fair caveat, and it means most readers can wait. But it does not make the standard pointless. Creative professionals running external GPUs or multi-display rigs, and IT buyers speccing docking stations for a three-to-five-year refresh cycle, are exactly the users for whom paying for guaranteed bandwidth now avoids a bottleneck later. The mistake is applying that logic to a laptop that will only ever charge a phone and run one monitor.

Frequently Asked Questions

Is a USB4 cable the same as a Thunderbolt cable? Not necessarily. A USB4-branded cable can be certified at a lower speed tier and still carry the USB4 name, while a Thunderbolt-certified cable always guarantees the full rated speed for that generation. If a cable does not list a Thunderbolt generation or an explicit "80Gbps" rating, treat it as a basic USB4 cable.

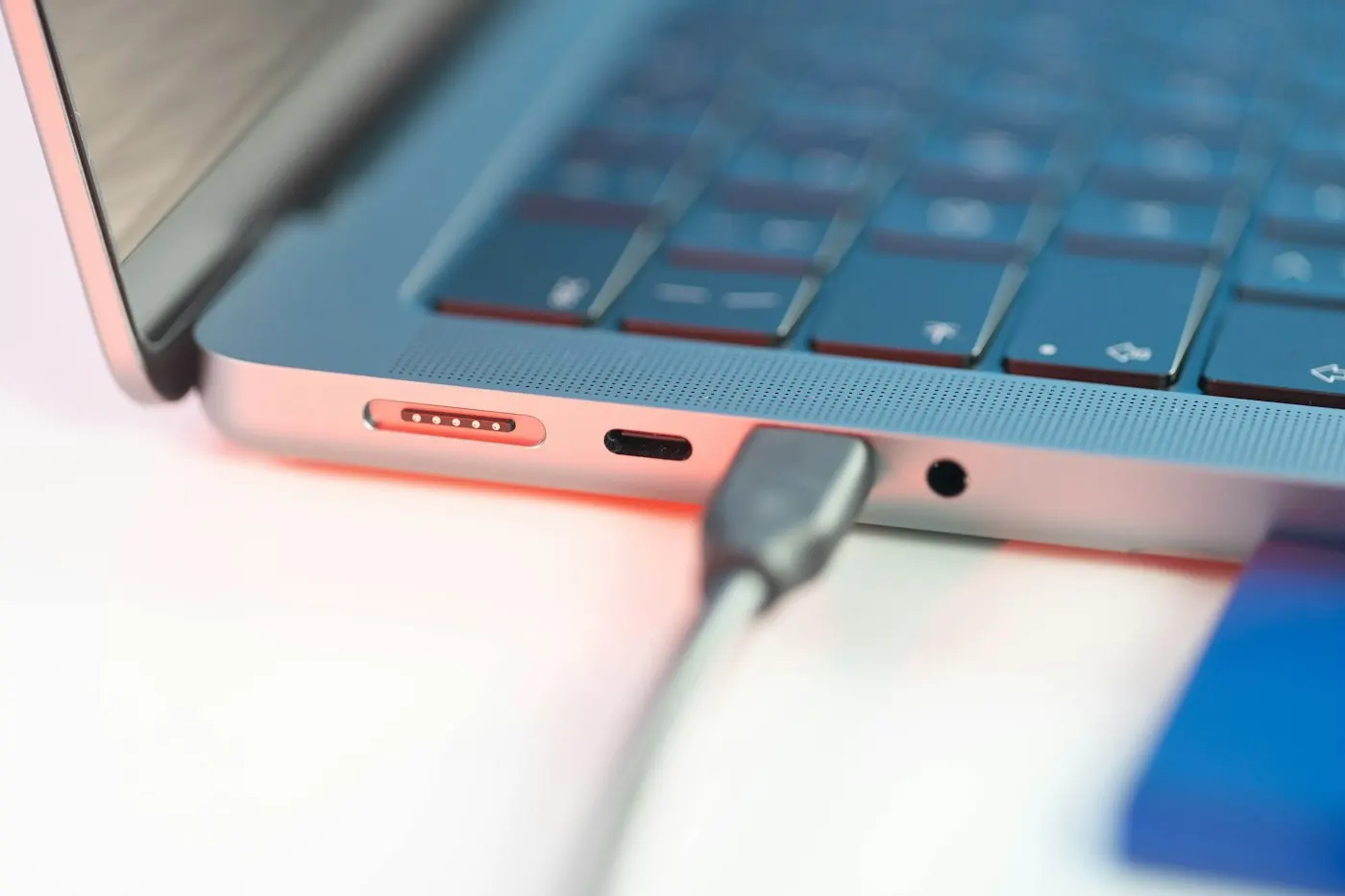

Will a Thunderbolt 5 cable work in a USB4 port, and vice versa? Yes, the connectors are physically identical USB-C, and Thunderbolt hardware is backward compatible with USB4 and USB-C devices. The link will simply negotiate down to whichever side supports the lower speed.

Does Thunderbolt 5 replace USB4 entirely? No. Thunderbolt 5 is Intel's certified, guaranteed-performance tier built on top of the USB4 2.0 foundation. Plain USB4 ports and cables will keep shipping on budget and mid-range devices for years, since not every product needs or can absorb the cost of full Thunderbolt 5 certification.

The Bottom Line: Check the Label, Not Just the Name

Do not shop by the word "USB4" alone. Look for the printed speed rating or the Thunderbolt 5 logo on the port, cable and dock itself, since a bare "USB4" claim can guarantee far less than either standard's 80Gbps ceiling. If your work genuinely depends on external GPUs, multi-display rigs or high-bitrate storage, Thunderbolt 5 gear is worth the premium today. For everyone else, a standard USB4 or USB 3.2 connection still has plenty of headroom, and the smarter move is to wait for Thunderbolt 5 to become the default rather than pay extra to get there first.

Sources

• USB-IF: Announcement of USB4 Version 2.0 Specification
• Intel: Thunderbolt 5 Technology Brief
• Tom's Hardware: Thunderbolt 5 Debuts, 120 Gbps Speed
• Cable Matters: Thunderbolt 5 vs USB4 Comparison
• Tom's Guide: MacBook Pro M5 Pro and M5 Max Announced
• Plugable: Thunderbolt 5 in Q2 2026
